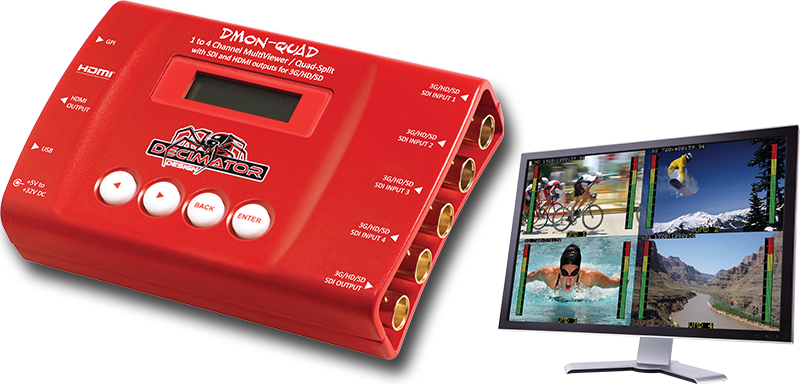

DMON-QUAD

DMON-QUAD

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters


  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
  • Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Horizontal and/or Vertical image flipping per window
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default) or Border
  • Tally boxes allows for up to 4 Tallies per window
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Variable aspect ratios per window
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
  • This unit also includes:
    • GPI on RJ-45 connector for Tallies and Remote Switching
    • RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
    • USB port for control and firmware updates
    • Robust Aluminium box
    • Metal Thread Locking DC Power Socket
    • Power Supply, HDMI Cable and USB Cable
