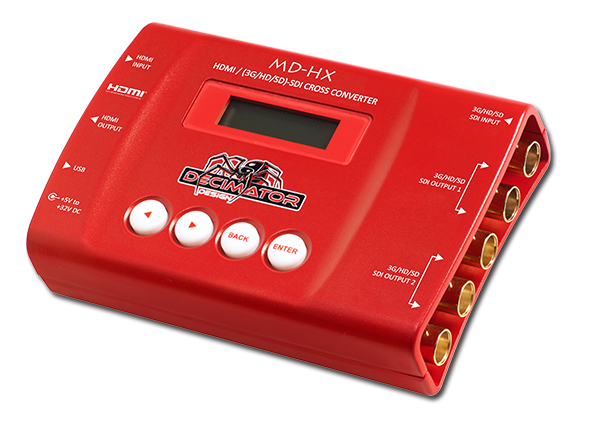

HDMI / SDI CROSS CONVERTER
with Scaling and Frame Rate Conversion
- Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
- Horizontal and/or Vertical image flipping via the built in scaler.
- Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
- Robust Aluminium Case with easy to use LCD and button control system.
- Features the following 14 modes:
- 1.SDI IN to HDMI and SDI OUT
- 2.SDI IN to SDI OUT and HDMI IN to HDMI OUT
- 3.SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- 4.SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- 5.HDMI IN to SDI OUT and SDI IN to HDMI OUT
- 6.HDMI IN to HDMI and SDI OUT
- 7.HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- 8.HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- 9.Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
- 10.Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
- 11.Scaled SDI IN to HDMI and SDI OUT
- 12.Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
- 13.Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
- 14.Scaled HDMI IN to HDMI and SDI OUT
- 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2
- The audio pairs in the SDI and HDMI outputs can be rearranged as required.
- Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
- This unit also includes:
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
