MD-QUAD V3

MD-QUAD V3

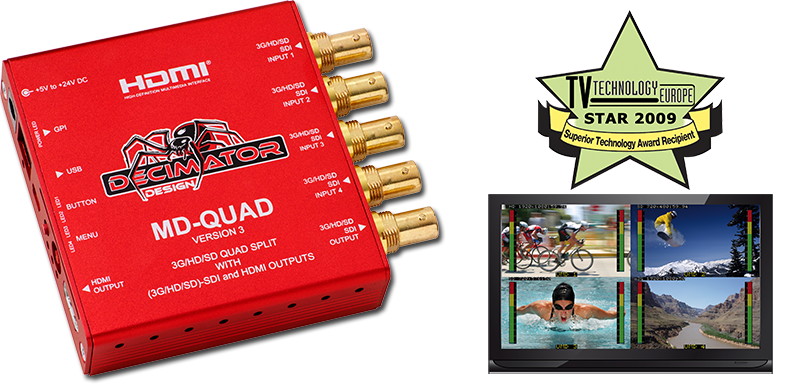

1 to 4 Channel Multi-Viewer / Quad-Split with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts

  • Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B
  • Professional 3G/HD/SD Test Pattern Generator featuring:
    • 26 Selectable Output Formats
    • 54 Test Patterns including Luma and Chroma Zone-plates
  • Audio Tone Generator
  • Horizontal and/or Vertical image flipping per window
  • Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Tallies can be applied to either Tally Boxes (Default) or Border
  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
  • An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
  • USB port for control and updates
  • Locking DC Power Socket
  • 5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching
  • RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol
  • The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
