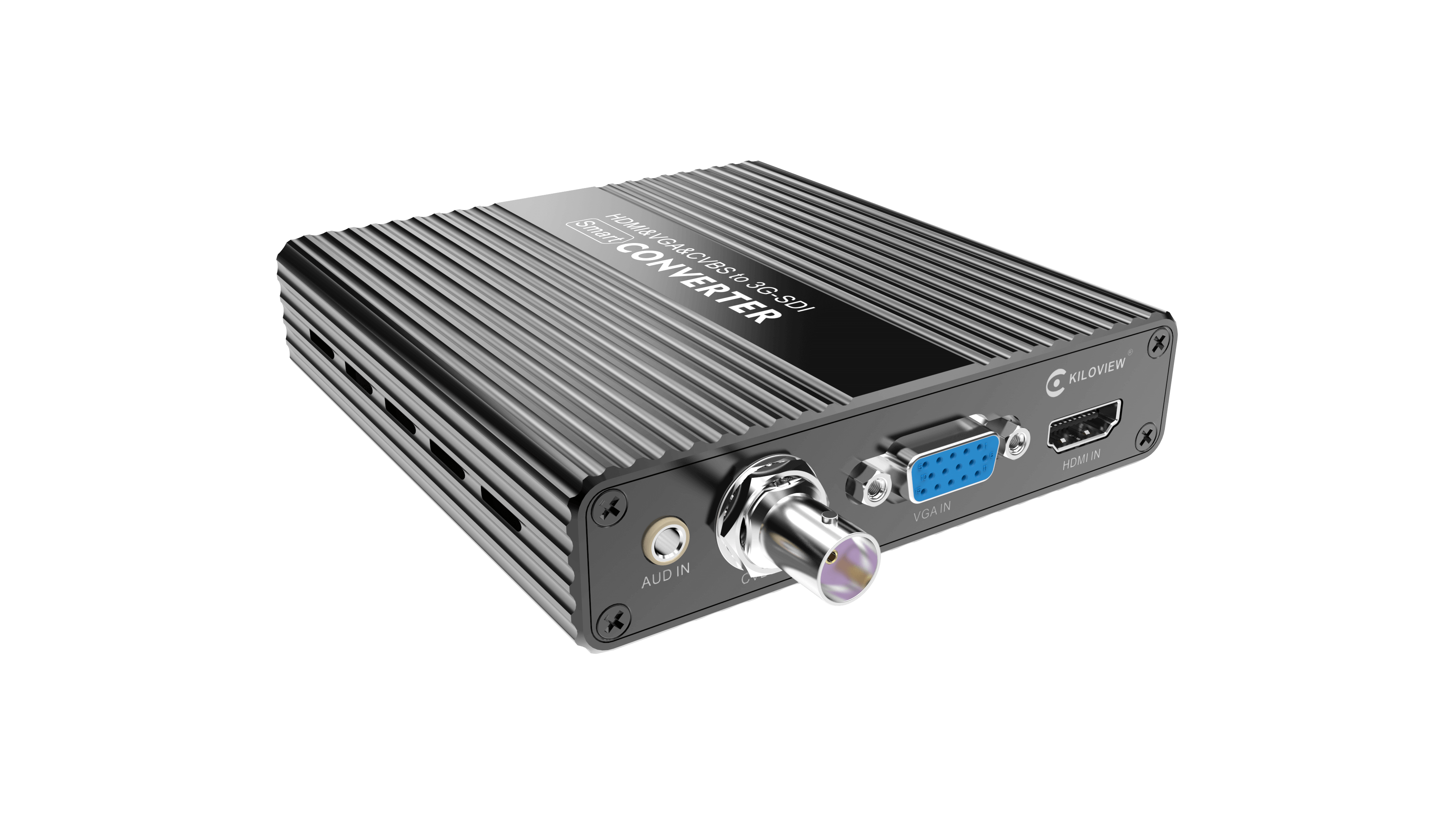

CV190 Broadcast Grade HDMI/VGA/AV to SDI Video Converter

Kiloview KV-CV190 is a broadcast level multifunctional video converter which can convert HDMI, VGA and AV(CVBS) to SDI with functions of frame conversion, resolution conversion, image scale up/down, color conditioning, image enhancement and adjustment.

Features

• HDMI/VGA/AV( CVBS) to SDI
• Strong compatibility
• Frame/resolution conversion
• Remote control
• Web configuration management
• 7*24h continuous working mode

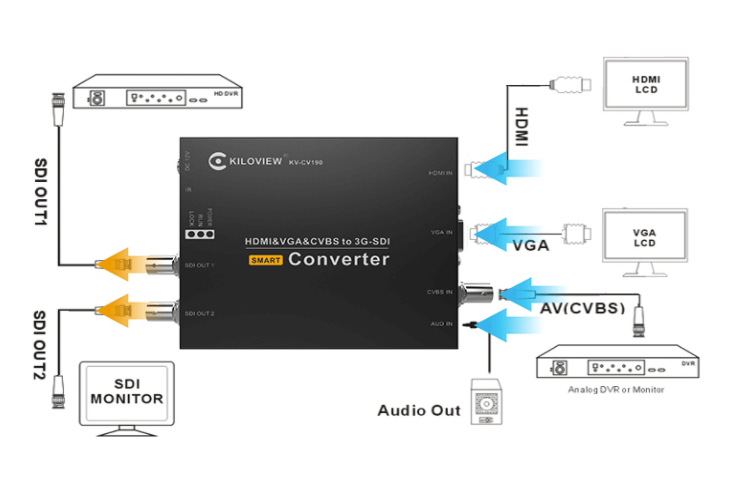

Kiloview CV190 video converter is suitable for the applications that need to convert HDMI/ VGA/ AV (CVBS) to SDI signal, such as broadcast, video teaching and training, HD video information release, HD video long-distance transmission, video conferencing, multimedia advertising and video security monitoring etc..

High compatibility, wide application.

• HDMI, VGA and AV (CVBS) signals can be manually specified or automatically identified.
• It supports HDMI audio un-embedded/ analog audio input, and making audio embedded into SDI signal.
• SD/HD/3G SDI output supported; supports 2 channels SDI output simultaneously.
• Integrated with enhanced SDI line driver, it can ensure SD SDI transmission distance up to 400m, HD SDI transmission distance 200 m, 3G SDI transmission distance 100 m, under Belden 1694A and same cable quality conditions.
• Advanced settings or firmware upgrading is available by connecting PC via USB.

High quality image conversion and image enhancement processing, it can make sure the image quality to broadcasting level.

• 10bit YUV4:2:2 conversion, it can keep the color without distortion.
• Professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

High quality, 7*24h continuous working mode.

• High quality capacitors, PCB board, interfaces adopted which ensured the stability of the device, making 7*24h continuous working available.
• EMC and HDMI test passed, products have high compatibility and reliability.
• Blue screen display while signal loss.
