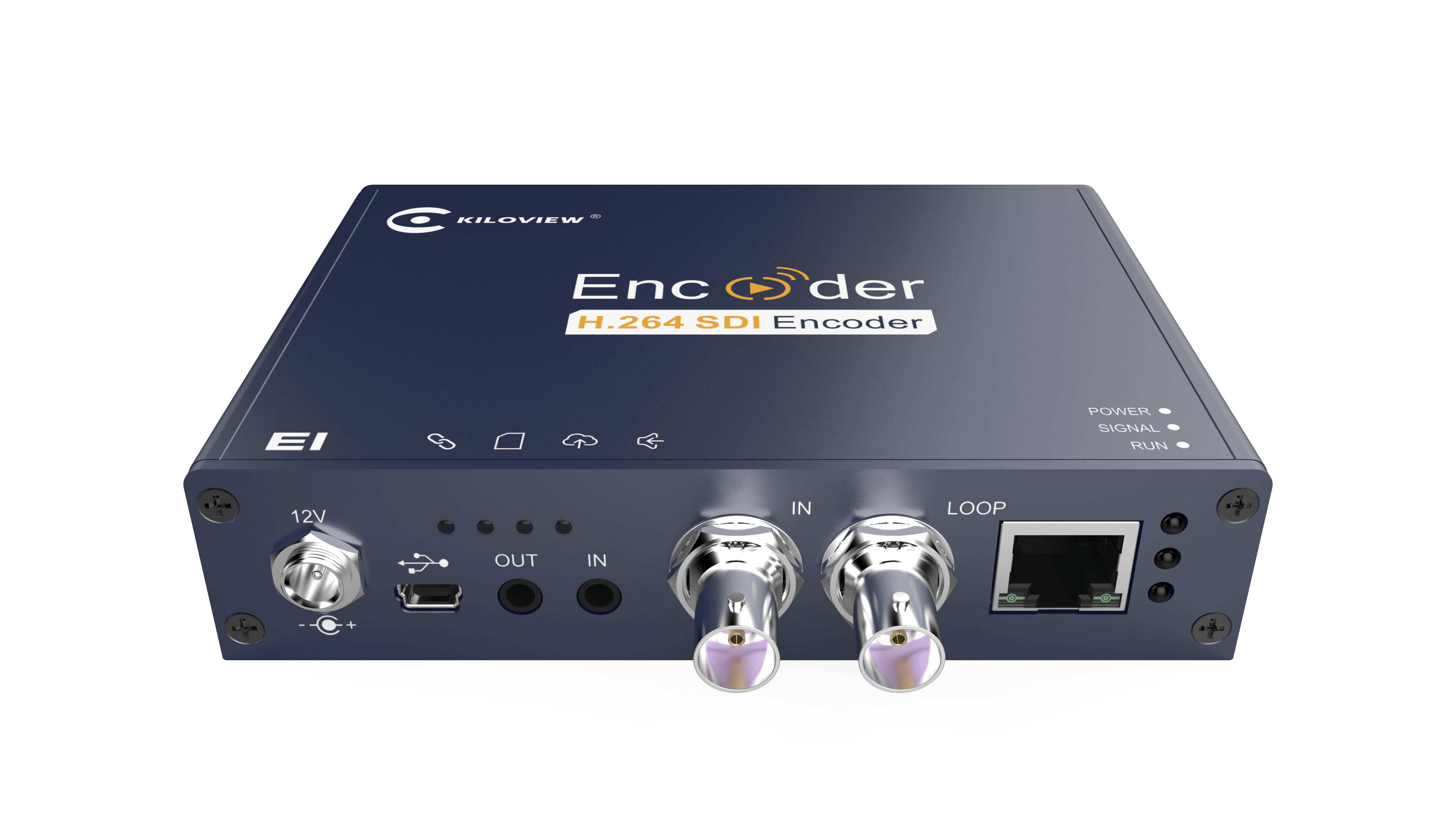

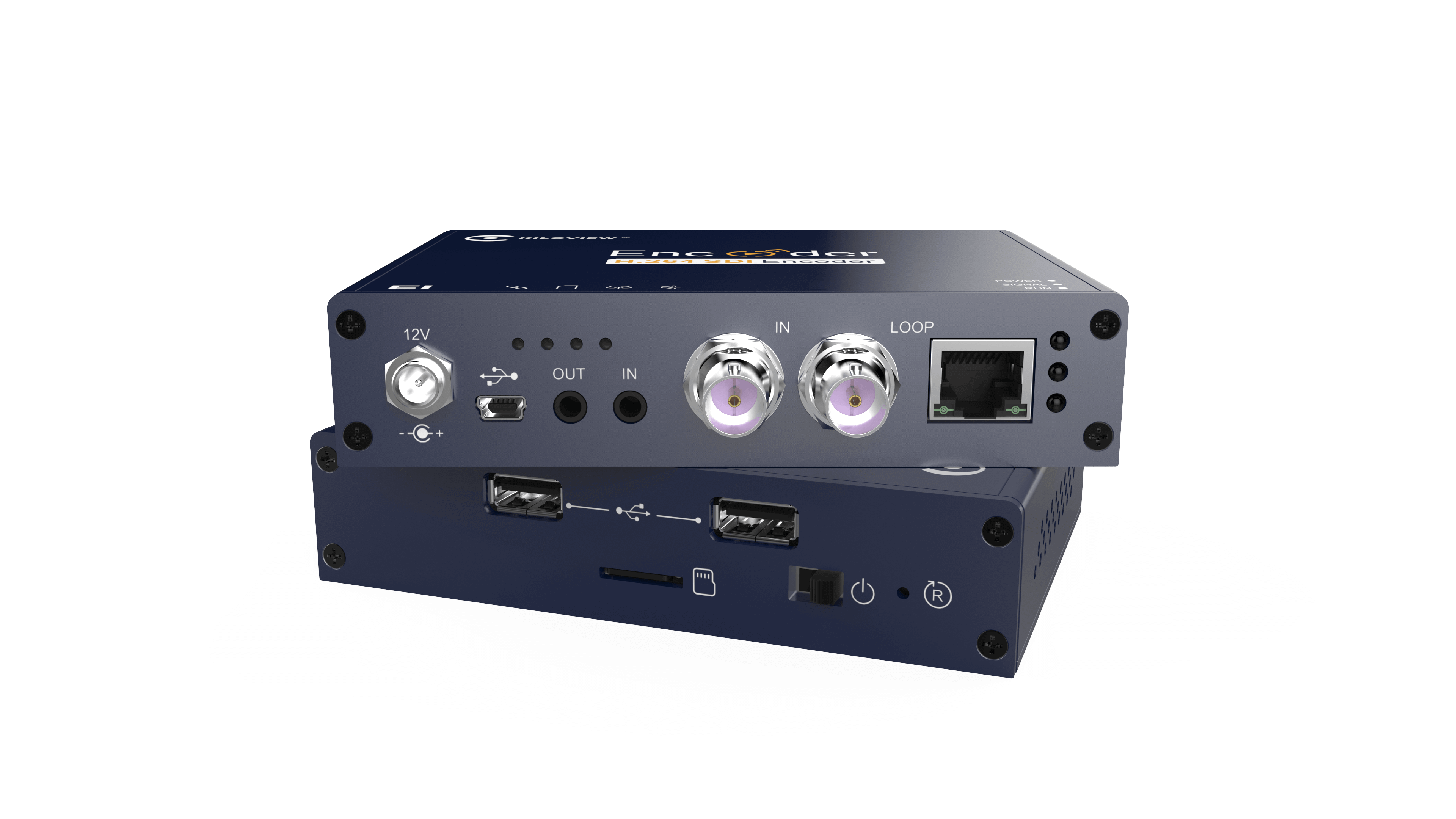

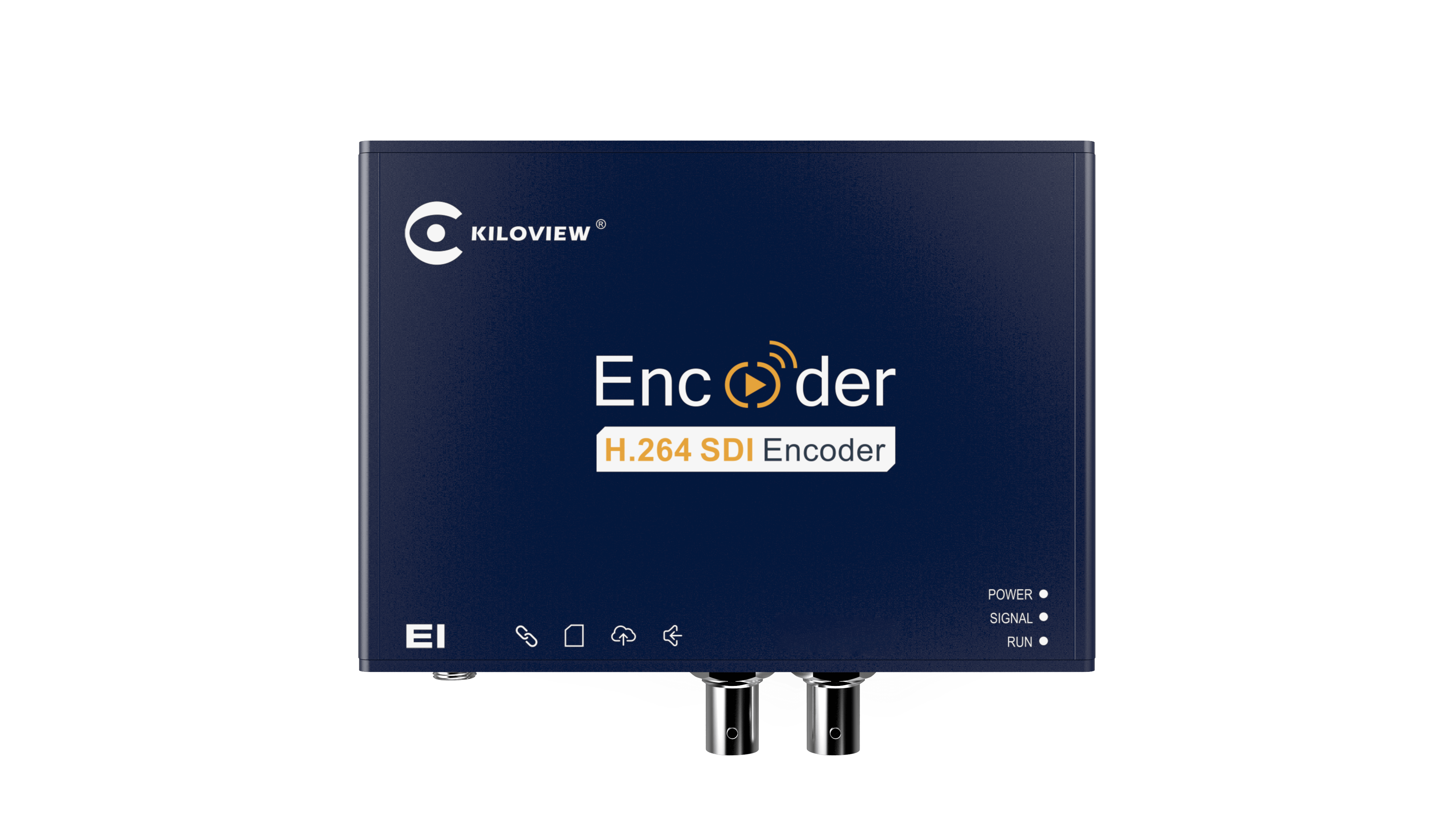

E Series Wired Video Encoder
Low Cost Video Encoder

E series video encoder can encode SDI or HDMI video source and compress into IP stream(NDI supported), to realize long-distance HD transmission/live broadcast over WAN or LAN. It supports SRT/RTMP/RTMPS/HLS/UDP/RTSP/Onvif etc.

Features

• SRT
• Portrait Live
• Multi-platform live broadcast
• Image and text overlay
• Recording storage
• PTZ control
• 7*24h continuous working
• SDK/API provided
• Low cost

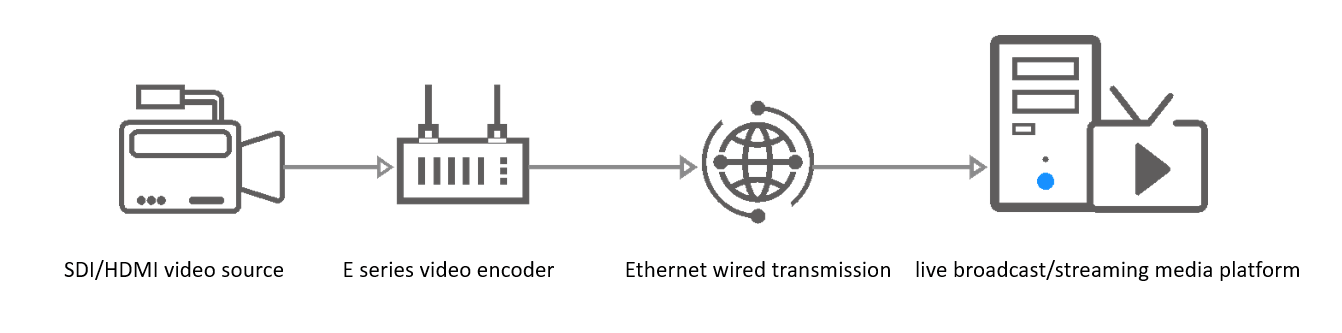

Conference/program/event webcast, video network transmission, video interactive connection point to point, SDI camera network transformation, HDMI network transmission/live broadcast, video network recording, portrait live broadcast, etc.

High quality chip solution and modular software system to ensure high image quality and high stability

• High quality chip, FPGA processing after video capture, H.264 algorithm optimization, different streaming protocols,etc., to ensure clear, smooth and high color reproduction;
• 8-layer PCB board design, dual CPU, modular software , low power consumption and low heat dissipation , voltage overload protection, automatic reconnection when power and network off, etc., ensure that the device is stable and can work 7*24h continuously;
• Adjustable bit rate from 64kbps～40Mbps；
• Input resolution supports up to 1080P60, the encoding output resolution is adjustable.

Powerful streaming media service ( support SRT), support dual stream output and 8stream services can be opened simultaneously for the main and sub streams

• H.264 encoding, support SRT transmission point-to-point and Caller/Listener/ Rendezvous three transmission modes；
• Simultaneously support RTP/RTSP/ RTMP/ RTMPS/HLS/TS-UDP/Onvif etc. streaming media protocols;
• Customizable support for NDI/SIP/GB-T28181 etc. special protocol;

Support video rotation/cutting(portrait live broadcast), image and text overlay, video recording, monitor etc.

• Support video rotation / cutting before (such as horizontal screen to vertical screen) ,horizontal mirroring,color adjustment, etc. before encoding;
• Support custom text and picture overlay function, which can be superimposed to any position on the screen;
• Micro SD/TF card for local recording, and support NAS network storage;
• Support SDI/HDMI embedded audio encoding, and 3.5mm analog audio input encoding;
• Monitoring and USB expansion PTZ;

Model	E1(SDI)/E2(HDMI)
Video input	E1: 1*BNC 3G-SDI; E2: 1*HDMI
Analog audio interface	2*3.5mm

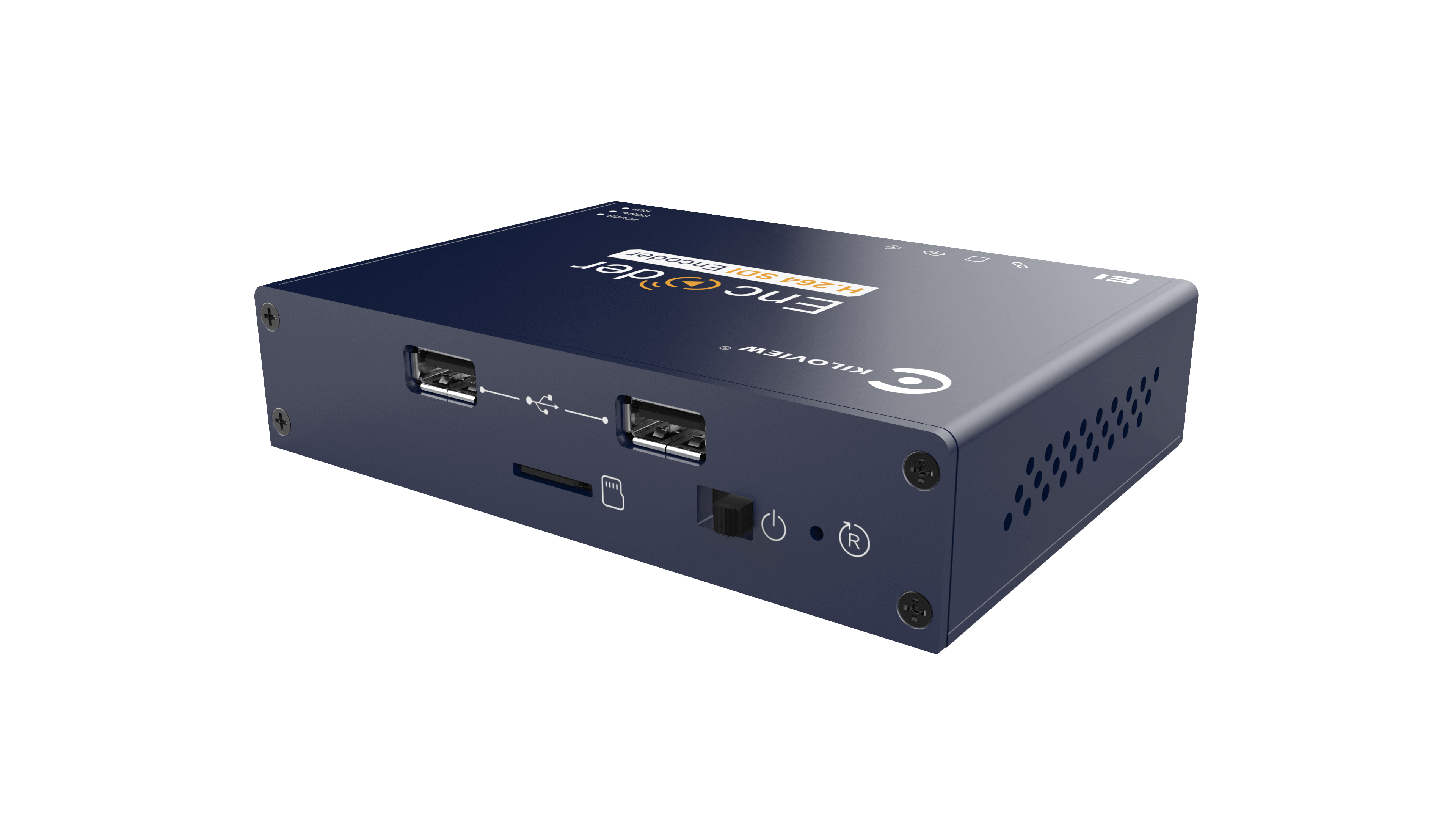

USB interface	2*USB 2.0 Type-A;
Micro SD	1*Micro SD/TF Card Storage interface
Network support	Wired/Satellite
Video loop	E1: 1*BNC 3G-SDI; E2：1*HDMI
Video resolution	Up to 1080P60Hz: SDI: 1080P23.98/24/25/29.97/30Hz;1080P50/59.94/60Hz; 1080I50/59.94/60Hz;720P23.98/24/25/29.97/30Hz;720P50/59.94/60Hz HDMI: 1080P23.98/24/25/29.97/30Hz;1080P50/59.94/60Hz; 1080I50/59.94/60Hz;720P30/50/59.94/60Hz; below 1920*1200.
Video encoding	H.264/AVC, Motion-JPEG
Audio encoding	AAC/G.711
Encoding latency	<67ms
Media transmission protocols	SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif etc, customize for NDI/SIP/GB-T28181
Image and text overlay	Support
Record storage	Micro SD/TF card local recording, and NAS network storage
Management	APP/ Web/IMS
Power supply/consumption	DC 12V 1A/4W
Dimension/Weight
	125*89*28mm/380g
Operation temperature	-20℃~60℃
