True Resolution Independence

Present your audience with an immersive viewing experience defined by amazing clarity and incredible detail. Produce programs, performances, events and live sports in the resolution of your choice, all the way up to true 4K UHD (Ultra High Definition)+

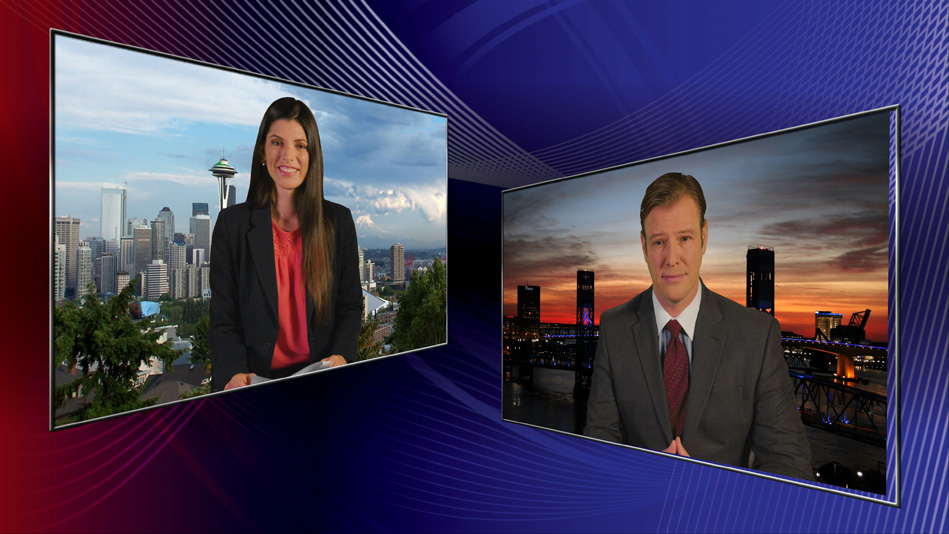

Powerful Switching & Compositing

Powered by innovative software-driven technology, TriCaster gives you the tools to turn every frame of video into an artistic masterpiece. Consider the screen a blank canvas and unleash your inner artist with multi-camera switching, mix effects, zero-latency video re-entry, custom animated transitions, a full-motion composition engine, and much more.

Integrated Real-time Motion Graphics with Adobe® Authoring

Import your own graphics from Adobe® Photoshop® or create your own custom animations with Adobe® After Effects® using Vizrt LiveGraphics. It lets you work with the same Adobe® Creative Cloud® tools you already know, so there are no proprietary applications to learn or specialized training required. Use Datalink™ to import text and image links for informational graphics, sports, or social media integration.**

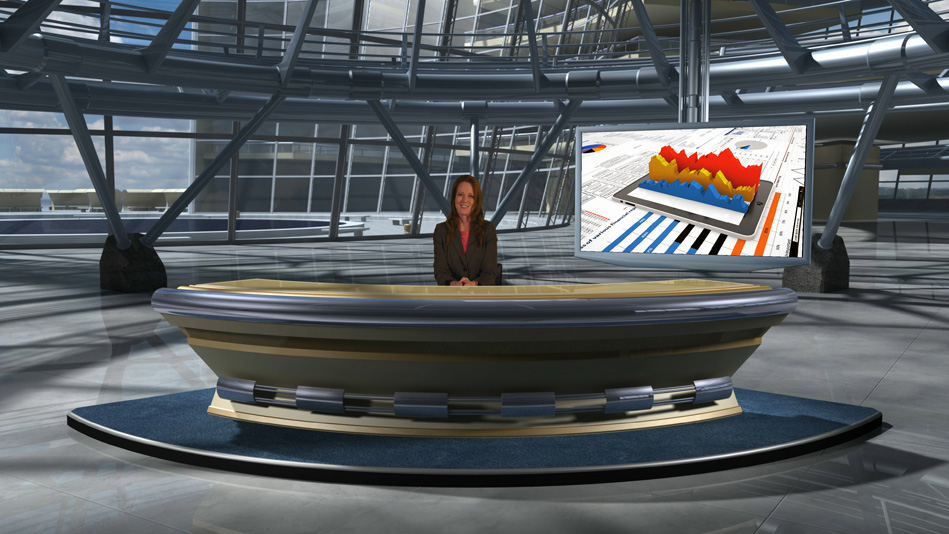

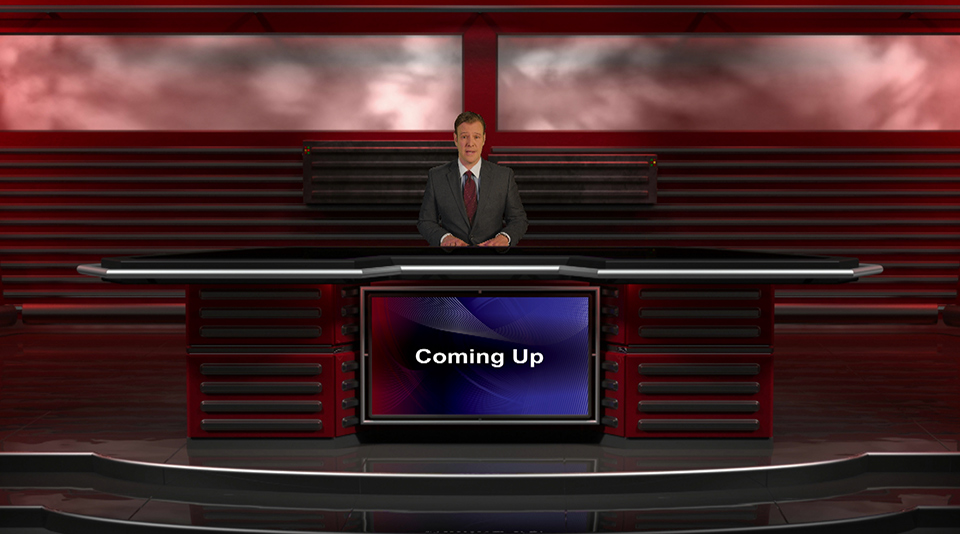

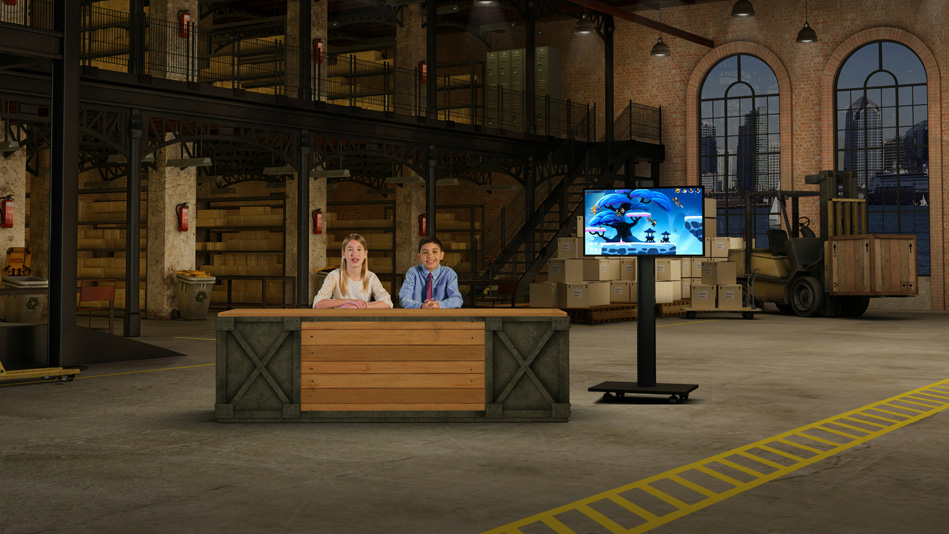

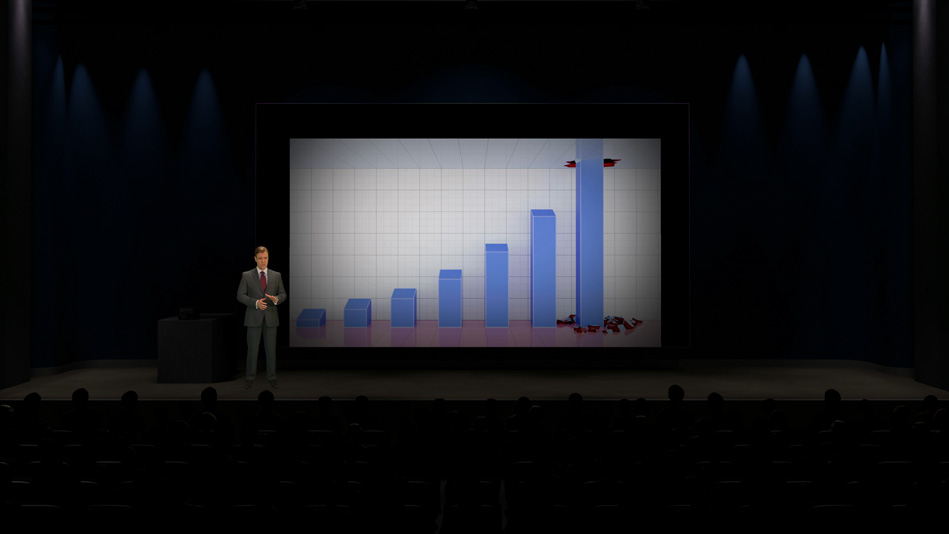

World-Class Live Virtual Sets

Save on studio and set expenses without sacrificing production value. With integrated LiveSet™ technology, TriCaster can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality.

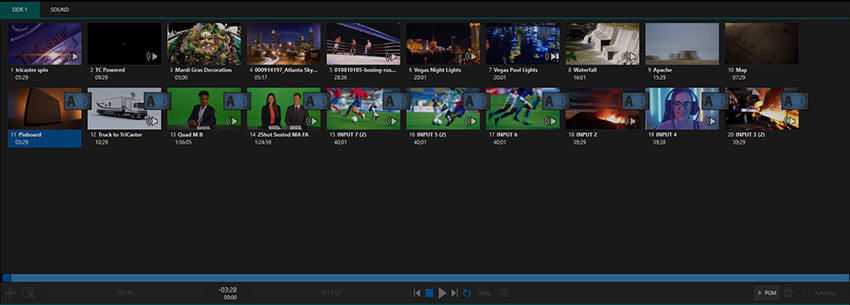

Built-in Video Players

Add your files to the built-in video players for on-demand and automated playback, including auto-advancing playlists, live-edited highlight reels, and much more. With responsive player controls, presets, real-time editing tools, selectable transitions, and playlist effects, you have everything needed to make magic from your stored media.

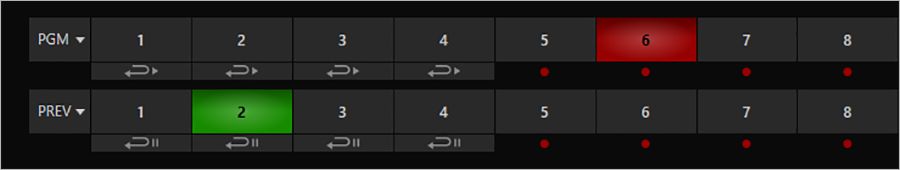

Unlimited Recording & Replay

Capture all your sources during a production in any resolution or frame rate for fixes in post or archiving for later use. You can also trigger replays from the Program or Preview bus on any input without using a separate replay system.*

Skype TX Integration

Conduct a live Skype video call with any remote guest, anywhere in the world. TriCaster systems are the only video production systems to feature direct Skype TX software integration with broadcast-quality video and balanced audio, allowing you to present production-ready conversations, interviews, reports, and more—regardless of the caller’s device.

Multi-screen Delivery & Streaming

It’s more important than ever to deliver content to ALL of today’s screens. You can output 16x9 video for traditional video applications. Or, change your aspect ratio to square or vertical video with no compromise in production power and stream that content using the built-in dual encoders to multiple destinations simultaneously. Unlike other products, only TriCaster allows you to switch, stream and record in into a wide array of formats, resolutions, aspect ratios, and frame rates.

Social Media Publication

Share real-time updates and on-demand content across your social media accounts, uploading images and video directly to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more—complete with comments and hashtags.

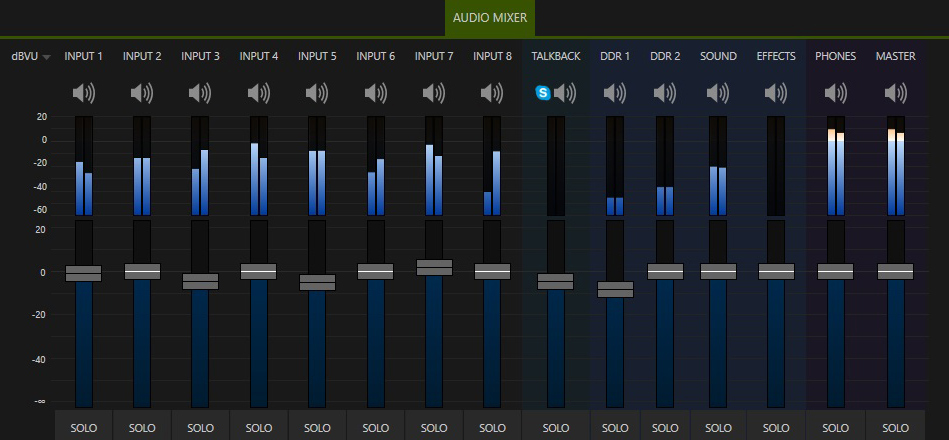

Multichannel Audio Mixing

Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog, and USB audio devices, audio over IP networking with NDI®, Dante™, and AES67, professional DSPs, fader control, VU metering, Talk Back communication, and 4 x 4 x 4 channel routing to four audio mix outputs.*

Real-Time Monitoring and Multiviewers

See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With three customizable multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, scopes, and more, you can easily personalize the environment to your preference.

Revolutionary Automation & Teleprompter from MS Word®

With Live Story Creator, script the entire production in your favorite word processor, including production cues (camera takes, transitions, effects, graphics, clips, and more), and export as a .docx file. Load the file into your TriCaster system and run the teleprompter control to execute the entire production. Virtually anyone can run quality and consistent productions without experience or training.**

Software Control Panels

Create your own software-based control panels and operate your TriCaster system from any compatible desktop or mobile device—anywhere on the network with LivePanel. Easily accessible through any Web browser or operating system, LivePanel includes production-ready control panels for remote video mixing, media playback, audio mixing, and macro automation, plus the LivePanel Builder tool to design your own custom panels geared toward your unique productions and workflows.

Simplified IP Connectivity with NDI®

Say goodbye to the tangled mess of bulky video cables and take advantage of the plug and play simplicity of NDI (Network Device Interface) IP video protocol. Connect to a wide variety of Vizrt NDI-enabled products, along with the world’s largest ecosystem of third-party IP video products using a single network cable for video, audio, key, control, tally, and in some cases power over Ethernet.

Network Video Input	Network Video Input8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1 2160p 59.94, 50, 29.97, 25 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25
PTZ	Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Network Video Output	2 x independent IP video mix outputs via NDI®
Stream Output	2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs	4 x mini display port with output adapters 3 x of the outputs support multiviewers using standard display resolutions
Mix/Effect Buses (M/E)	4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 2 sources 2 x KEY layers per bus
DSK Channels	2 x DSK channels
Media	5 x media players 2 x DDR 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers
Keyers	Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses 8 x input keyers 2 x media player keyers 4 x M/E keyers 15 x buffer keyers
COMP	Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus
Virtual Sets	Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Recording	4 x recording channels from either NDI® inputs or Mix outputs (10 x with Premium Access) Records and retains alpha channel data 4 x QuickTime® archival video recorders (Native NDI Codec for recording)2
Storage	Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing	Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Local Audio Input	1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Local Audio Output	2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio	Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support3 for Dante™ networking protocol from Audinate®
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-1.5 frames
Tally	Support for network tally via NDI®
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	2 x 1 Gigabit NIC
System Physical	System chassis, including adjustable cable retention bracket 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm) 9 lbs (4.1 kg)

Video Input	8 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input	8 x IP video inputs via NDI®, resolution-independent, with support for key and fill
Digital Video Input	4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1 1080p: 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25
PTZ	Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Video Output	Configurable for up to 4 independent video mix outputs, with simultaneous digital and IP delivery
Network Video Output	4 x independent IP video mix outputs via NDI®
Digital Video Output	2 x independently configurable HDMI video outputs
Stream Output	1 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs	1 x DVI user interface with multiviewer 1 x HDMI multiviewer 1 x DVI display output 1 x HDMI display output
Mix/Effect Buses (M/E)	4 x M/E buses, each supporting 2 configurable sources and 2 configurable KEY layers 1 x PREVIZ configuration and preview bus
DSK Channels	2 x DSK channels
Media	5 x media players 2 x DDR 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers
Keyers	Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
Virtual Sets	Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface
Recording	5 x configurable video recording channels via IsoCorder™ technology 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)2 1 x H.264 distribution video recorders (multiple profiles) 1 x MP3 audio recorder
Storage	1 x 750GB internal drive Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 Supports shared storage integration and third-party partner solutions
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing	Integrated multi-channel audio mixer with configurable DSPs, 4 x 4 x 4 audio input channel routing, and 4 independent output mixes
Local Audio Input	4 x embedded HDMI audio inputs 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Local Audio Output	2 x embedded HDMI audio outputs 2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio	Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support3 for Dante™ networking protocol from Audinate®
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-2.0 frames
Tally	Support for network tally via NDI®
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	1 x 1 Gigabit NIC
Built-In WiFi	Supports wireless connection to local network 802.11ac WiFi standard
Built-In Bluetooth	Support for keyboard and mouse using wireless Bluetooth technology
System Physical	Vizrt Mini system chassis, including adjustable handle and cable retention bracket 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm) 9 lbs (4.1 kg)

Video Input	8 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input	8 x IP video inputs via NDI®, resolution-independent, with support for key and fill
Digital Video Input	4 x SDI video connections supporting video input in any combination of standard formats, resolutions, and frame rates 1080p: 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25
PTZ	Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Video Output	Configurable for up to 4 independent video mix outputs, with simultaneous digital and IP delivery
Network Video Output	4 x independent IP video mix outputs via NDI®
Digital Video Output	2 x independently configurable SDI video outputs
Stream Output	1 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs	1 x DVI user interface with multiviewer 1 x HDMI multiviewer 1 x DVI display output 1 x HDMI display output
Mix/Effect Buses (M/E)	4 x M/E buses, each supporting 2 configurable sources and 2 configurable KEY layers 1 x PREVIZ configuration and preview bus
DSK Channels	2 x DSK channels
Media	5 x media players 2 x DDR 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers
Keyers	Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
Virtual Sets	Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface
Recording	5 x configurable video recording channels via IsoCorder™ technology 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1 x H.264 distribution video recorders (multiple profiles) 1 x MP3 audio recorder
Storage	2 x 750GB internal drive Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 Supports shared storage integration and third-party partner solutions
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing	Integrated multi-channel audio mixer with configurable DSPs, 4 x 4 x 4 audio input channel routing, and 4 independent output mixes
Local Audio Input	4 x embedded SDI audio inputs 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Local Audio Output	2 x embedded SDI audio outputs 2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio	Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support3 for Dante™ networking protocol from Audinate®
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-2.0 frames
A/V Standards	HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally	Support for network tally via NDI®
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	1 x 1 Gigabit NIC
Built-In WiFi	Supports wireless connection to local network 802.11ac WiFi standard
Built-In Bluetooth	Support for keyboard and mouse using wireless Bluetooth technology
System Physical	Vizrt Mini system chassis, including adjustable handle and cable retention bracket 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm) 9 lbs (4.1 kg)

Video I/O	1 x HDMI (Input) 1 x HDMI (Loop) 1 x NDI® (RJ-45 port)
Audio	1 x HDMI embedded audio input (48/44.1/32 KHz) 1 x 1/8” (3.5 mm) Line Level (48 KHz) Stereo audio (2-channel LPCM)
Tally	Tally support via NDI®
Power	Power over Ethernet (PoE support conforms to the IEEE 802.3af-2003 specification) External power via USB type-C (5V 2A)
Physical	Portable enclosure with threaded screw camera mount 4.72 x 3.54 x .87 in (120 x 90 x 22 mm) .53 lbs (.24 kg)
+ Resolution support:	2160p: 60, 59.94, 50, 30, 24 1080p: 60, 59.94, 50, 30, 29.97, 25, 24 720p: 60, 59.94, 50, 29.97 480p: 60, 59.94 (16:9, 4:3)
